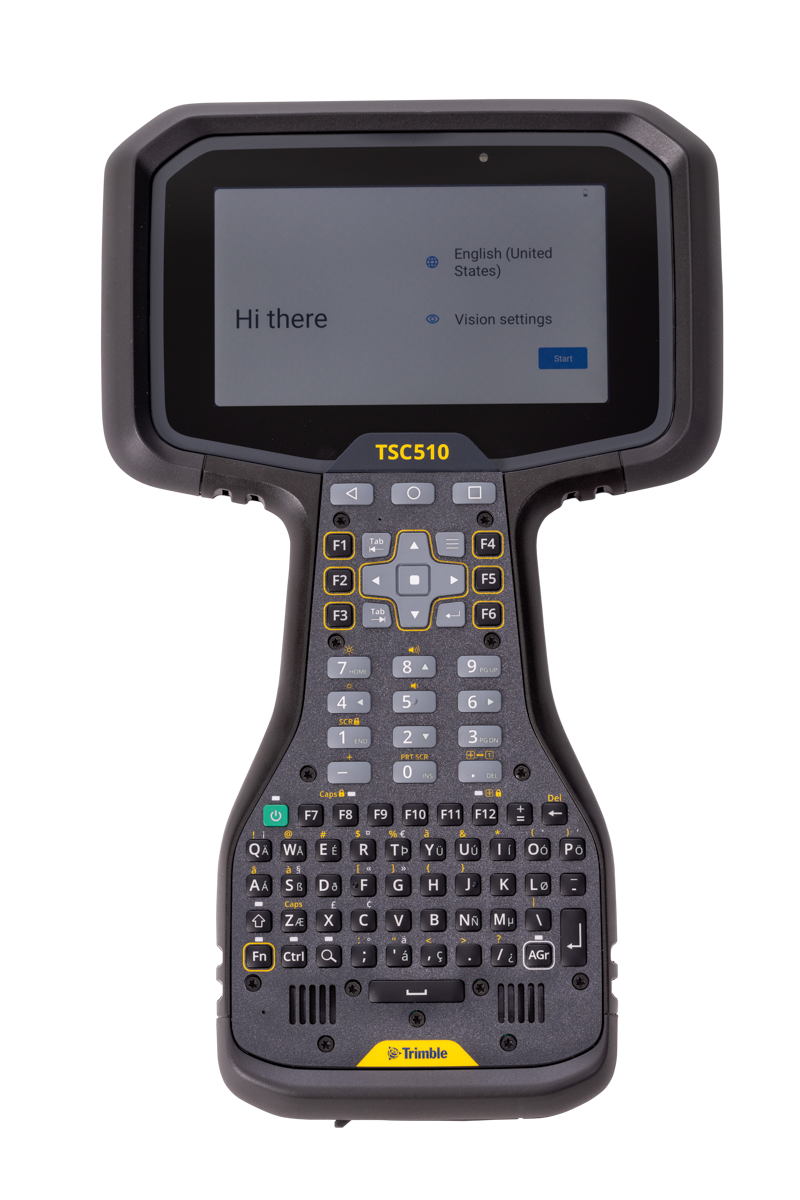

Trimble TSC510 Controller
Connect to a better way to work.
The Trimble® TSC510 controller delivers a powerful combination of speed, connectivity, and rugged durability, designed to boost field efficiency and keep your projects on track.
Benefits and performance
-
Confidence in the field –
Powered by the Qualcomm® QCS6490 processor, the TSC510 is up to three times faster than the TSC5, handling large files effortlessly and ensuring smooth, uninterrupted workflows from data capture to office processing.
-
Stay connected anywhere –
Integrated Wi-Fi 6, 4G WWAN, Bluetooth® 5.2 (classic and BLE), NFC, and Android™ Quick Share make communication seamless—whether sharing data through Trimble Connect® or WorksManager, connecting to a base station, or transferring files to nearby devices.
-
All-day productivity –
Work without compromise with up to 18 hours of battery life and an optional hot-swappable supplemental battery. Its military-spec build and IP68 rating ensure resilience in extreme weather, terrain, and work conditions.
Key specifications
The TSC510 combines powerful performance with field-ready durability.
- Processor: Qualcomm® QCS6490
- Memory & Storage: 8 GB RAM | 128 GB Flash
- Operating System: Androidâ„¢ 14 with Google Mobile Services
- Display: 5" HD sunlight-readable touchscreen (800 nits)
- Weight: 987 g (excluding optional battery and accessories)
- Battery Life: Up to 18 hours GNSS RTK usage | Hot-swappable
- Connectivity: Wi-Fi 6, 4G LTE, Bluetooth 5.2, NFC, USB-C
- GNSS: Integrated multi-constellation support (GPS, GLONASS, Galileo, BeiDou, QZSS)
- Environmental: MIL-STD-810H | IP68 | Operating temperature −30°C to +60°C
Features and capabilities

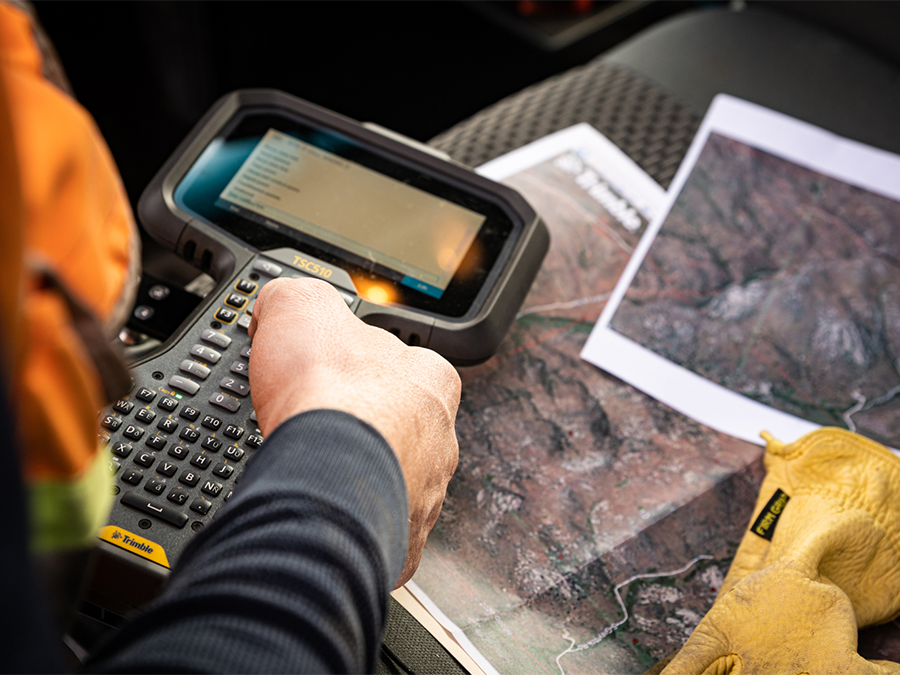

Faster Performance
Complete jobs more quickly with faster processing and improved energy efficiency, even when working with the largest datasets.
Connected Workflow
Stay in sync with your team and data in real time through Trimble Accessâ„¢ or Siteworksâ„¢ software, integrated cloud tools, and versatile communication options.

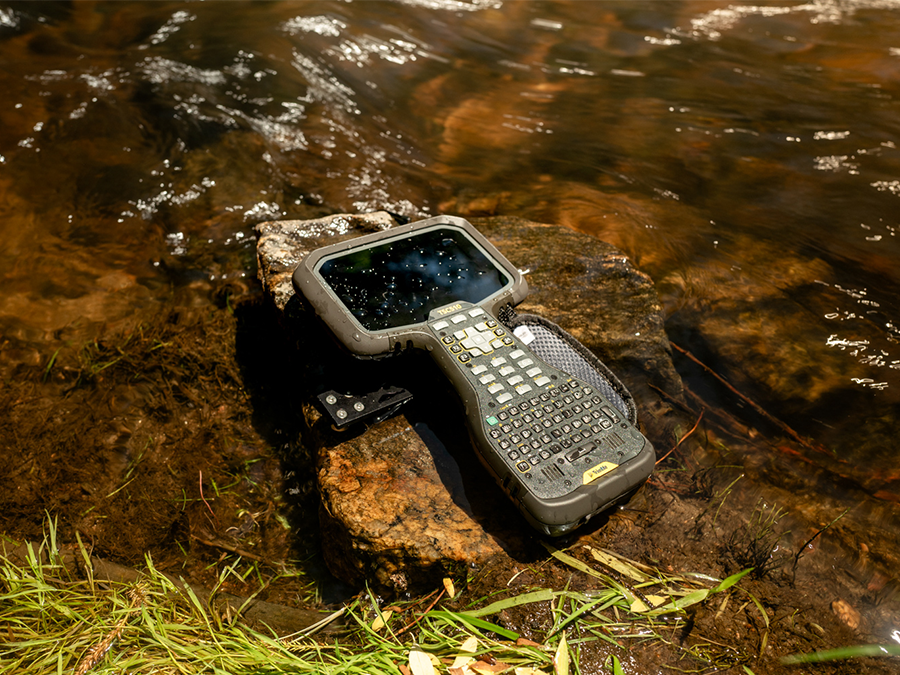

Rugged Reliability
Built to military standards and IP68-rated, the TSC510 withstands drops, dust, water immersion, temperature extremes, and prolonged sun exposure.
Field-Optimized Design
The sunlight-readable display, glove-friendly touchscreen, and ergonomic keypad keep you productive in any environment.
-
High-performance processing –
3× faster than TSC5 -
Large-file handling –
Smooth, delay-free workflows -
Full connectivity suite –
Wi-Fi 6, 4G LTE, Bluetooth, NFC
-
Extended operation –
All-day battery + hot-swap option -
Built for extremes –
MIL-STD-810H, IP68 -
Compatible software –
Trimble Access™, Siteworks™, Trimble Connect®, WorksManager
